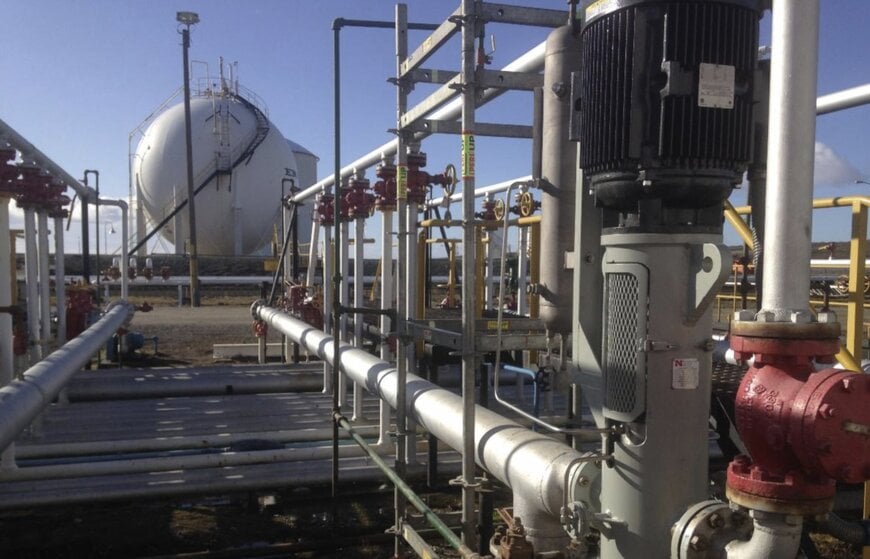

Low NPSH impellers for vertical turbine pump performance

Pump selection in water, industrial, and infrastructure applications often depends on managing suction conditions to avoid cavitation and performance losses. In this context, National Pump Company presented a range of low Net Positive Suction Head Required (NPSHR) impellers designed for vertical turbine pump installations.

Addressing suction limitations in vertical turbine pump installations
Net Positive Suction Head Required (NPSHR) is a key design parameter in pump engineering because insufficient suction head can result in cavitation, reduced efficiency, and premature component wear. Since NPSHR is determined at the first stage of a vertical turbine pump, National Pump Company designed its low NPSH impellers specifically for this position to reduce suction head requirements while maintaining hydraulic efficiency.

The product range includes 12 low NPSH first-stage impeller variants in 2-inch size increments, allowing engineers to better match pump hydraulics to system requirements. These configurations are intended for applications where available NPSH (NPSHA) is limited or where suction conditions may fluctuate during operation.

Combining first-stage impellers with standard hydraulic stages
The impellers are designed to be combined with standard impeller geometries in subsequent bowl assembly stages. Examples include configurations such as L8HC-S first stages paired with L8MC and L8HC impellers, as well as L10HC-S combined with L10LC, L10MC, and L10HC stages. Additional combinations include M12HC-S with M12LC, M12MC, and M12HC, M14XXHC-S with M14MC, M14HC, and M14XXHC, H14XHC-S with H14LC, H14MC, and H14XHC, K20HC-S with K20LC, K20MC, and K20HC, and H24MC-S with H24LC and H24MC stages.

This modular approach allows pump designers to balance flow rate, head performance, and suction requirements while reducing the likelihood of cavitation at the pump inlet.

Alternative to deeper pump settings in marginal NPSHA conditions
In installations where available suction head is limited, traditional approaches include increasing pump setting depth or selecting canned pump designs. Increasing installation depth can increase NPSHA, with each additional foot of pump setting typically adding approximately one foot of available suction head. However, this solution may increase both equipment costs and installation complexity.

Low NPSH first-stage impellers provide an alternative design approach by reducing the suction head required at the hydraulic entry point, potentially reducing the need for deeper installations while maintaining long-term operational reliability.

Expanding hydraulic coverage for suction-limited applications
Additional low NPSH first-stage impeller models are under development for release in 2026 and 2027. Planned additions include the KK10LS model, designed for compatibility with K10LC stages, and the DH16FS model for use with H16MC and H16XHC stages.

These additions are intended to expand the available hydraulic combinations for different flow rates and head requirements, supporting a wider range of suction-limited applications across industrial pumping environments.
