Jhuesa completes an industrial water supply plant using reverse osmosis in the personal hygiene sector
Jhuesa successfully completes the commissioning of a water treatment plant in an industry dedicated to the manufacture of personal hygiene products.
On this occasion, our client, a leading company in its sector, has relied on us to improve the quality of the feed water to its production process.

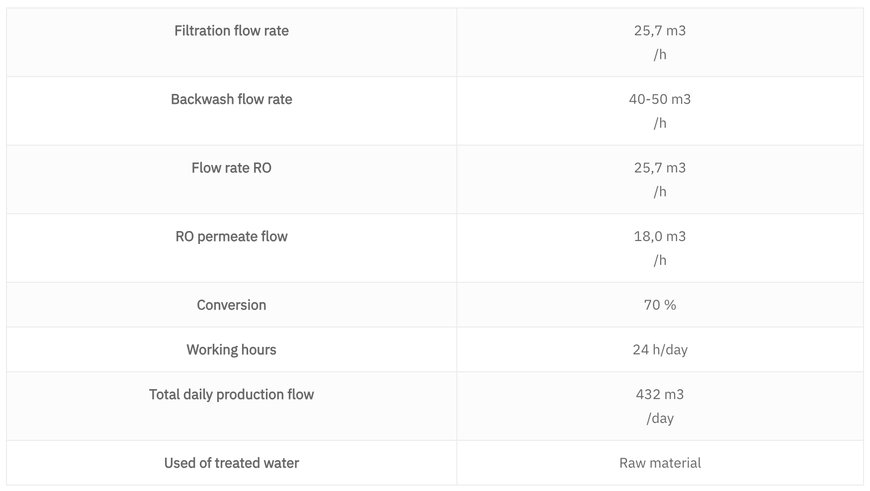

Adopted solution
Once the raw water samples taken at different points of the production process were analysed, we concluded that they had a high content of salts, organic matter and suspended solids.
At this point, the technical department of J. Huesa opted for the design and manufacture, customised, installation and commissioning of a water treatment plant using reverse osmosis as the central element, whose objective is to clarify and desalinate the water and reduce the colloid content present in it, improving the quality of the feed water and reducing operating costs.
Pretreatment
The raw water to be treated is stored in an accumulation tank from which it is pumped to the pretreatment room.

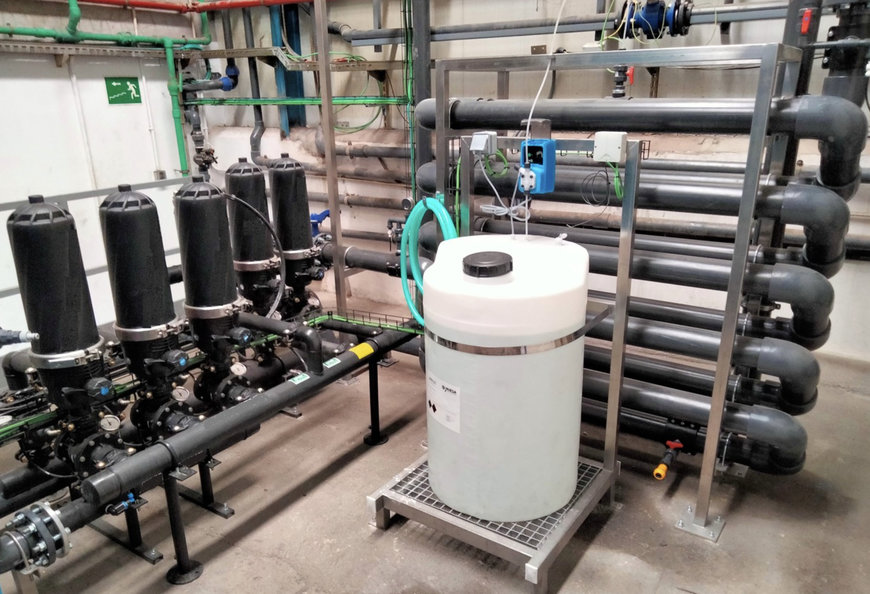

Ring Filtration
In an initial stage of the pre-treatment and to make easier the elimination of solids in the filtration stage, the raw water passes through a static mixer in which flocculant and sodium hypochlorite are injected, in such a way as to guarantee the necessary contact time between the chemical and the water to be treated. This sub-process allows the formation of flocs of the appropriate size.
The water then passes through a double-stage ring filtration system that removes the flocs formed in the mixer:
- Stage 1: two 200-micron ring bells in parallel.
- Stage 2: three 50-micron ring bells in parallel.
This filter battery is equipped with a controller and automatic cleaning, which is started either by time in service hours and/or pressure difference detected between inlet and outlet, starting the cleaning sequence of each of the filtration hoods. These are cleaned individually one after the other. For cleaning, the water accumulated in the boiler is used, while previously filtered and dried compressed air is injected. While one hood is being cleaned, the others are kept in operation.
Zeolites Filter
Working in series with the ring filter, and to adjust the turbidity of the water (removal of finer solids), the system has a fixed bed filter of porous solids. This filter has a system of independent valves to carry out the washing operation of its load. The operation of the valves is automatic and is managed by the automaton located in the control panel included in the reverse osmosis system container.

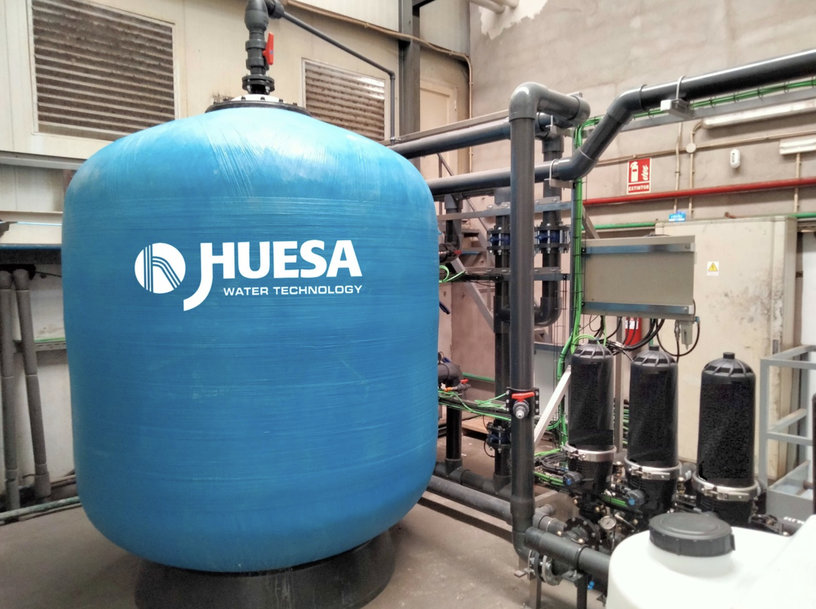

Specifically, there is a glass fibre reinforced polyester (GRP) filter with a diameter of 1800 mm. As soon as this filter requests cleaning, due to time in service hours and/or pressure difference detected between inlet and outlet, production is interrupted.
This cleaning process consists of two stages:
- Backwashing: for cleaning the load, using the same water used in service and the same pumping system. The duration of this phase can be modified, and the water used is sent to the drain.
- Settling: necessary to prepare the load for the return to service of the filter. As in the previous phase, its duration can be modified, and the water used is sent to the drain.
This cleaning process is carried out by time and/or by maximum pressure loss in the water line between the inlet and outlet. Both parameters are modifiable on the screen. Once cleaning is requested, production is stopped. Once this process is finished, production is resumed.
Reverse Osmosis
The water then passes into the container in which the reverse osmosis system is located.
The pre-treated water passes to reverse osmosis which is preceded by the following sub-processes:
CHEMICAL DOSING SYSTEM
The following chemicals are used:
- Antiscalant: which prevents the appearance of saline scale on the membranes, improving the operation of the system in terms of flow rate.
- Sequestrant: to reduce the free chlorine in the water formed by the addition of hypochlorite during pre-treatment.
SAFETY PRE-FILTER
The pre-treated water passes to the reverse osmosis module, where it is first filtered through 5 micron pore size cartridges that will retain possible leaks of very small particles (suspended solids and colloids). The safety filter consists of replaceable 5-micron cartridges, which are managed by means of a pressure difference measured by two pressure gauges placed at the inlet and outlet of the filter.
REVERSE OSMOSIS
Once the water is ready, it is pumped by means of a vertical, in-line, high-pressure centrifugal pump in stainless steel AISI 316 with a capacity of 25.7 m3/h.
The reverse osmosis system is configured in a single stage, consisting of five pressure tubes each containing five membranes, achieving a conversion rate of around 75 %. The installation is fitted with spiral wound membranes, made of polyamide and specially designed for brackish water up to 8000 ppm and with the characteristic of working at low pressure.
MEMBRANE CLEANING EQUIPMENT
All membrane installations become fouled over time, depending to a greater or lesser extent on the pretreatment installed, requiring one to two chemical cleanings per year. The reverse osmosis plant includes a membrane washing system consisting of a reagent preparation tank, stainless steel recirculation pump and stainless-steel stage isolation and recirculation valves. The filling of this tank is automatic thanks to a float valve connected to the same osmosis water line.
Instrumentation and control

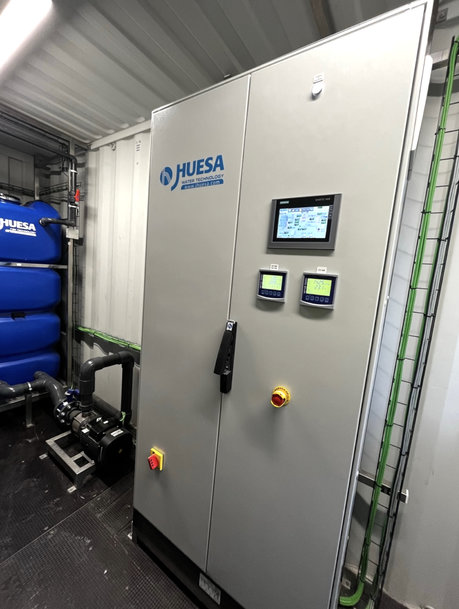

The reverse osmosis plant is equipped with instrumentation and control elements (automatic valves, pressure switches, pressure transmitters, flow meters, conductivity and Redox, etc.) which are centralised in an electrical panel located in the container.
The panel also includes a programmable logic controller and a touch screen for the operation and configuration of the plant. J. Huesa’s Instrumentation and Control team has designed the control panel so that it can be integrated in the client’s SCADA system, allowing a customized programming of all the operating parameters, as well as external connections of levels, alarms, pre-treatment, among others, through different I/O modules.
