UL Type 4X/IP66 Drive Supports Water Industry Applications in Extreme Environments

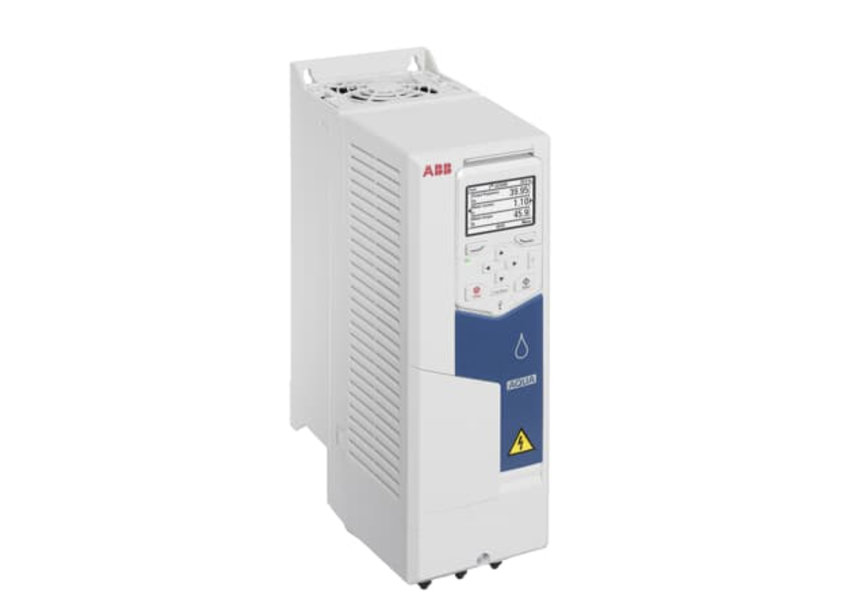

ABB's ACQ580 4X drive is a new addition to its all-compatible drive portfolio, designed for the water and wastewater industry. It can withstand extreme weather conditions like rain, heat, cold, salt spray, and dust.

The ACQ580 4X drive is certified to UL Type 4X (NEMA 4X) and IP66 rating against the in- gress of rain and windblown dust, hosing-down with water and water splashing as well as protection against corrosion due to caustic chemicals, gases, and damage from the for- mation of exterior ice, high levels of humidity or UV radiation. Fully sealed, this drive of- fers exceptional corrosion resistance in pump stations, clarifiers, surface aerators, floccu- lators, dosing and activated sludge removal (RAS/WAS pumps).

The ACQ580 4X drive comes with optional robust line disconnect. This robust UL98 discon- nect eliminates the need for branch circuit fuses while maintaining 100 kA SCCR, simplify- ing installation. The optional sun shield shades the UV-resistant drive from further expo- sure. If cabinet installation is needed, a flange mount option is available, allowing for a smaller cabinet footprint.

"All customers in the water and wastewater industry need robust and reliable equipment, but there are situations where the drive needs to live outside near the application, out in those extreme environments,” says Matt Moose, Product Market Manager, Wastewater and Irrigation, at ABB. “Our ACQ580 4X drive also is equipped with water specific software fea- tures making it easy to commission and use.”

The ACQ580 4X drive also comes with a standard Bluetooth control panel, facilitating seam- less and secure connectivity, commissioning, and monitoring through ABB apps Drivetune and Drive Composer. The Bluetooth panel improves convenience and enhances safety by keeping staff out of the arc flash boundary. Available in multiple power ratings from 1 to 30 HP in 1-phase 240 V, 3-phase 208-240 V, 3-phase 380- 480 V, and 3-phase 500 - 600 V, the ACQ580 4X drive launches on January 22, 2024.

For more information.

www.abb.com
